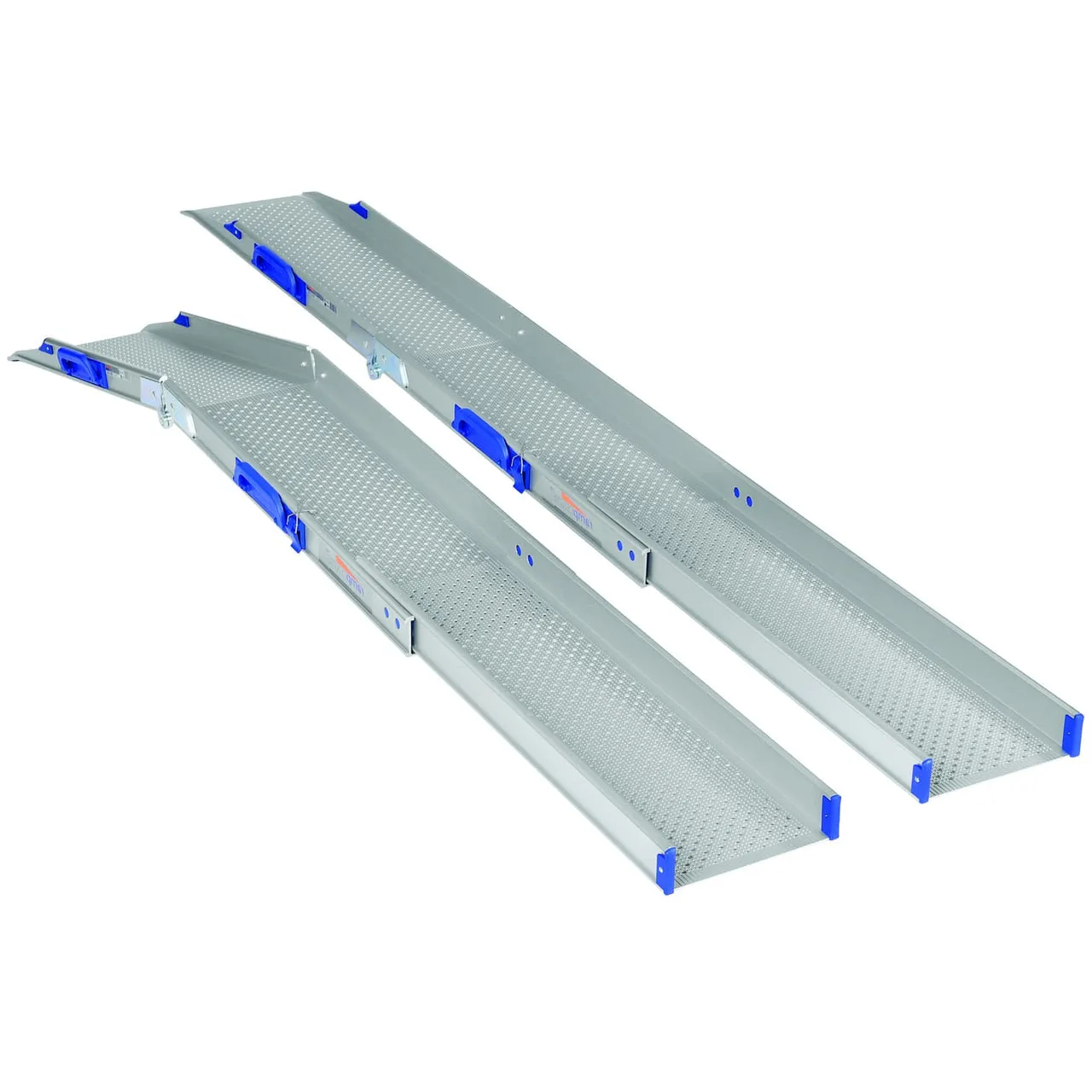

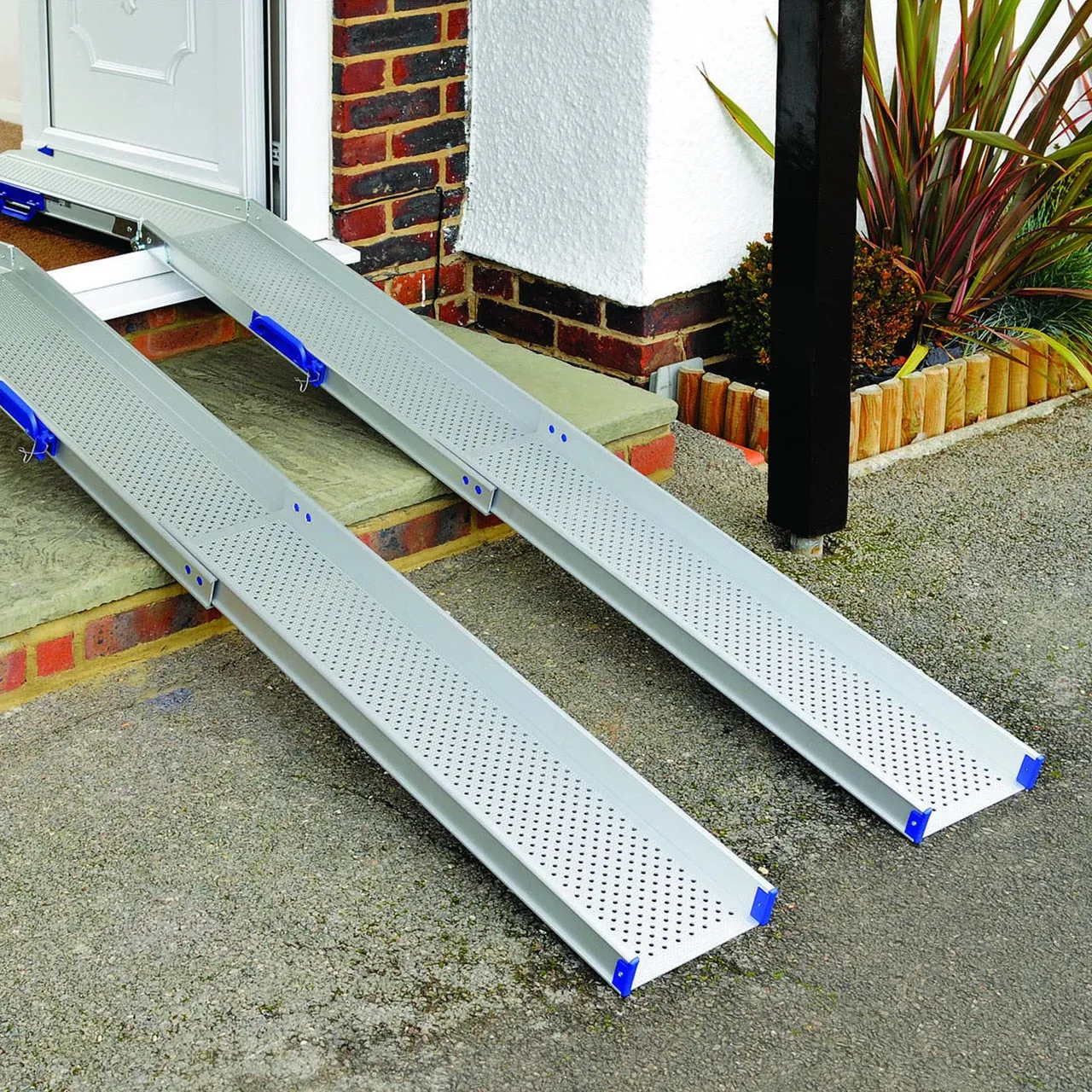

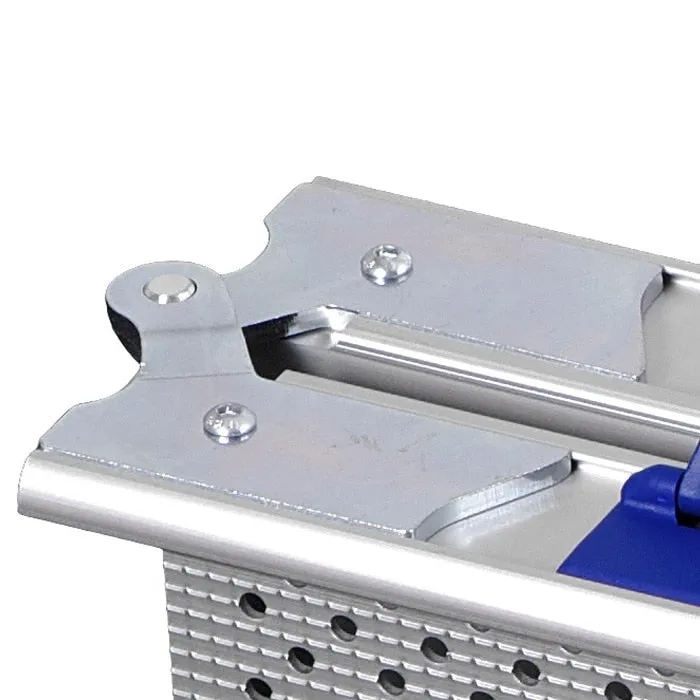

This unique product combines both folding and telescopic features, making it one of the most versatile ramps on the market. Also available in a greater width channel option
Finding The Correct Gradient
| 1:6 (10˚) | Acceptable in some cases for assisted access and powered wheelchairs | |
| 1:8 (8˚) | A good balance between gradient and space use, suited for events etc. | |
| 1:12 (5˚) | Often required by social services/local authorities. Minimum required Building Regs Doc M for installed ramps. | |
| 1:15 (4˚) | Sometimes required by social services/local authorities for independent access. |
Finding The Correct Length
| Step height / level difference (up to) | Length at 1:6 | Length at 1:8 | Length at 1:12 |
|---|---|---|---|
| 10cm (4") | 60cm (2ft) | 80cm (2ft 8") | 120cm (4ft) |
| 15cm (6") | 90cm (3ft) | 120cm (4ft) | 180cm (6ft) |
| 20cm (8") | 120cm (4ft) | 160cm (5ft 4") | 240cm (8ft) |
| 25cm ( 10") | 150cm (5ft) | 200cm (6ft 8") | 300cm (10ft) |
| 30cm (1ft) | 180cm (6ft) | 240cm (8ft) | 360cm (12ft) |
| 45cm (1ft 6") | 270cm (9ft) | 360cm (12ft) | 540cm (18ft) |
| 60cm (2ft) | 360cm (12ft) | 480cm (16ft) | 720cm (24ft) |
Low kerbs and long bevel sides greatly increase clearance for scooters and power chairs
Good choice for bridging a threshold with unequal levels each side
Extra width options for larger mobility devices, and incredible 3m length
Incredibly compact storage
Simple solution for PVC thresholds
Ultralight Telescopic Size Guide
| Code (pair) | Max Length | Length Telescopic Section | Length Hinged Section | Width (internal channel) | Capacity pair kg (st) | Weight kg (lbs) each half | Stored Dimensions l x w x d cm (inches) |
|---|---|---|---|---|---|---|---|
| PC21-3 | 207cm (6ft 9") | 132cm (52") | 75cm (30") | 19cm (8in) | 300 (47) | 6.5 (14) | 76 x 24.5 x 13 (30 x 10 x 5) |
| PC28-3 | 282cm (9ft 3") | 176cm (69") | 100cm (39") | 19cm (8in) | 250 (39) | 8.4 (19) | 102 x 24.5 x 13 (40 x 10 x 5) |
| PCW21-3 | 210cm (6ft1 1") | 135cm (53") | 75cm (30") | 25cm (10in) | 300 (47) | 8 (18) | 78 x 30.5 x 13 (31 x 12 x 5) |
| PCW28-3 | 300cm (9ft 10") | 194cm (76") | 106cm (42") | 25cm (10in) | 250 (39) | 11.4 (23) | 108 x 30.5 x 13 (31 x 12 x 5) |
| Kerb Height 5cm (2 ins) | |||||||
