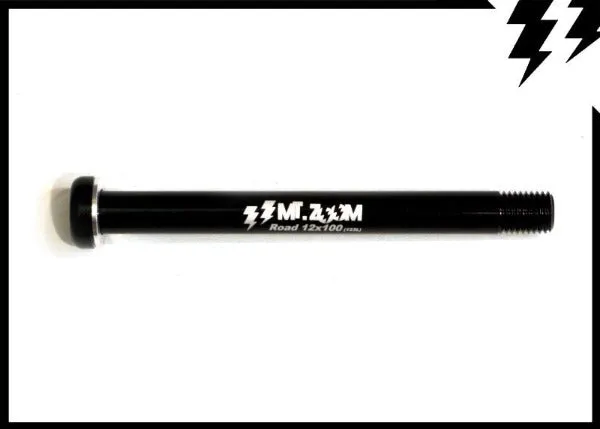

The MT ZOOM Ethru road thru axle is simple, light, strong and excellent value. At only 29 grams – drop some weight from your wheels. Compatible with road bike forks which use the Shimano E thru 12mm x 100mm axle standard.

1.5mm thread pitch. Length from inner washer 123.5mm.
2-year warranty.

[split]

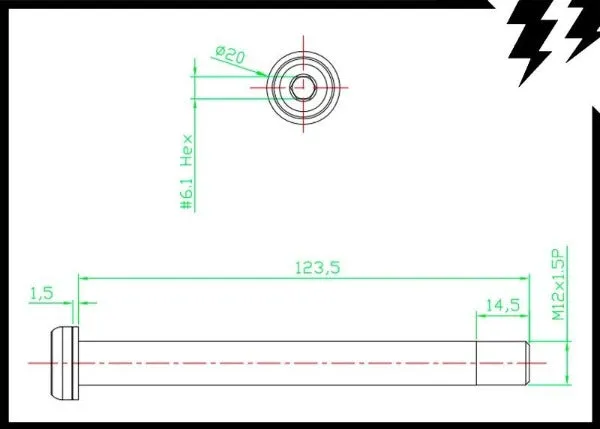

Key technical measurements:
Length from inner washer to end of thru axle: 123.5mm
Thread pitch 1.5mm
Washer width: 1.5mm
Thread area length: 14.5mm
Inner axle maximum width: 12mm
Product code: T16

Anodised black
7075 Aluminium

[split]

The 1.5mm washer helps protect the paint on your frame/for drop out - its use is optional, removing it gives 1.5mm extra length to the axle.

Uses 6mm hex allen key for smooth secure opening/closing (Max recommended torque 10NM).
